FireLite® Premium NT (Safety Film)

Standard FireLite-NT Typically Available "Ready to Ship" in only 3 working days!

Premium Grade FireLite-NT products are finish ground and polished on both surfaces to provide a superior-high-quality surface, visually improving overall clarity and providing a smoother surface that is optically unmatched by alternate fire rated ceramics currently offered on the market.

FireLite-NT is a Fire-Rated Filmed Impact Resistant clear transparent ceramic "wireless" UL Classified fire-rated 3/16" (5mm) thick glazing material meeting 20,45 and 60-minute fire ratings with required Hose Stream Test and Positive Pressure Tests (UL 10C).

FireLite Premium NT Applications

  • In 60 Minute Rated Walls or Partitions with up to 3,325 square inches of maximum exposed viewing area with a 95" maximum width or height dimension.
  • In 90 Minute Rated Walls up to 2,627 square inches of maximum exposed viewing area with a 56-1/2" maximum width or height dimension occurring in rated walls or partitions.
  • In non-temperature rise fire-rated Doors with 20, 45 and 60-minute fire ratings with required Hose Stream Test and Positive Pressure Tests (UL 10C) up to 3,204 square inches of maximum exposed viewing area with a 36" maximum width or 89" maximum height dimension,
  • In non-temperature rise fire doors with 90-minute rating up to 2,034 square inches of maximum exposed viewing area with a 36" maximum width and 56-1/2" maximum height dimension occurring in 90 minute rated doors
  • In Temperature Rise fire doors with 20, 45, 60 and 90-minute rating up to 100 square inches of maximum exposed viewing area with
  • a 12" maximum width and 33" maximum height dimension occurring in Temperature Rise rated doors

FireLite Premium NT Impact Rating

This product is for impact safety-rated locations.

FireLite-NT fire-rated filmed products are labeled as meeting the Impact Resistance requirements of ANSI Z97.1 and CPSC 16 CFR1201 (Cat I and Cat II) as required per IBC 2406 Safety Glazing in Hazardous Locations.

Impact Resistant locations include any windows occurring in a wall within 24" of a door opening, or within 18" of the floor, borrowed lites, sidelites, transoms or any glazing occurring in a swinging or sliding door or other high risks of human impact areas.

Important Notice:

*This product is not a barrier to radiant heat. This product does not meet the test standards of ASTM E-119 or UL 263. If your project requires a "barrier to heat" product please visit the Pilkington PyroStop product webpage.

FireLite-NT Glass Ceramic Features and Options

  • Fire-Rated up to 90 minutes with required Hose Stream Test
  • Passes the Positive Pressure Test standards of UL 10C,UBC 7-2 and UBC 7-4
  • Impact Resistant Safety Rated meeting ANSI.Z97.1 and CPSC 16 CFR1201 (Cat.I and II)
  • Withstands sudden Thermal Shock
  • Protection from fire and impact safety both sides of glass
  • Provides a clear view and is completely wireless
  • Larger pane sizes available (See FireLite-NT approved Listing sizes and limits)
  • Available in 2 optical surface grades: FireLite Standard and FireLite Premium
  • Available as laminated as Impact Resistant FireLite-Plus
  • Can be lightly sandblasted/etched with graphics or logos on 1 side
  • Also available in insulated glass units as FireLite-NT-IGU (Contact Ray-Bar for details)

FireLite-Premium NT Certifications, Listings and Approvals

  • This FireLite product is Classified and labeled by Underwriters Laboratories, Inc and Underwriters Laboratories of Canada.
  • Ray-Bar's UL File number for labeled fire-rated glazing assemblies is R38927.
  • Tests performed in accordance with UL 9, UL 10B, CSFM 43.7, NFPA 80, NFPA 252, NFPA 257, UBC 43.4, UBC 7-2, UBC 7-4,
    CAN4 S-104 and CAN4 S-106.
  • And approved for use in Los Angeles, CA: LARR 25798
  • Also approved for use in New York City, NY: MEA 290-90-M-6.

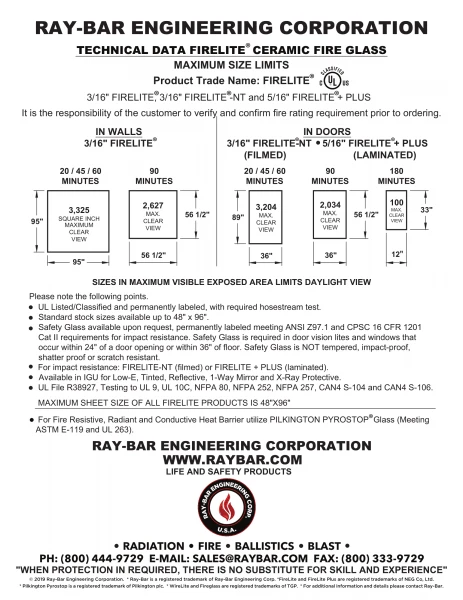

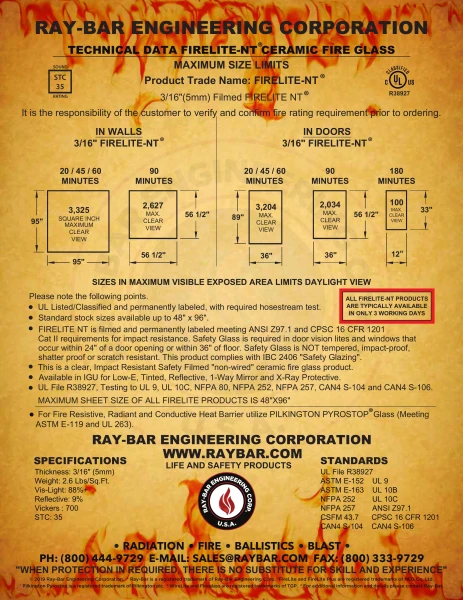

Ray-Bar Engineering Technical Data Sheet

Contact Us to Get Industry-Leading Safety Film Tailored to Your Requirements

For over 80+ years, architects, commercial builders, glaziers, and industry professionals across the country have relied on Ray-Bar Engineering for FireLite Premium NT safety film, fire-rated glass and other life and safety protective glazing solutions. Our commitment to superior fabrication and manufacturing and thorough UL performance testing and listings guarantees that our fireproof glass products meet strict building and safety performance standards.

Whether you require standard fire-rated glass or custom solutions for unique applications, Ray-Bar has the experience and expertise to provide the best products for your needs. Simply request a quote and experience the advantages of choosing Ray-Bar Engineering for your fire protection requirements.

×
